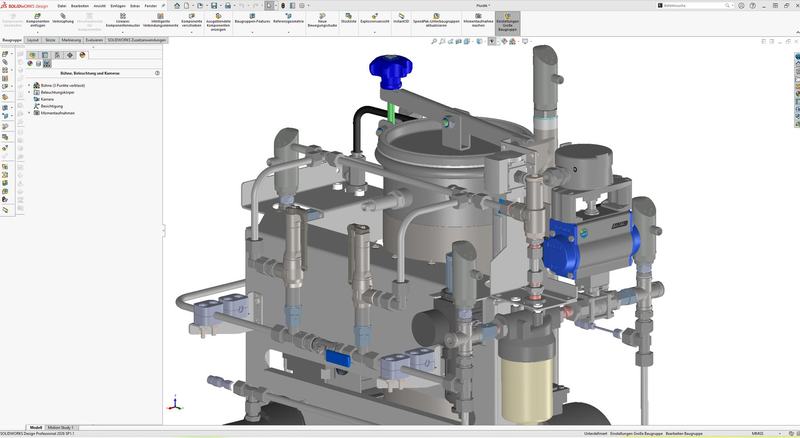

Fluid assembly
Tank, valves, filters and piping in one assembly.
Applications · Engineering design
Engineering design and product development
Profectronics does the engineering design in SolidWorks and develops printed circuit boards and fluid systems. The scope goes from the first idea to the assembled unit.
Services
Services and tools
3 disciplines that come together in test benches and special-purpose plants.
- Mechanics and sheet metal designSolidWorks
- Printed circuit boards (PCB design)Altium
- Fluid engineeringSolidWorks
Assembly, piping, wiring and factory acceptance test in Neuhofen an der Krems. Machining, sheet metal work, pipework and control cabinet construction with permanent partners.
Sequence
From the concept to the commissioning
Concept, engineering design, assembly with factory acceptance test and commissioning follow the sequence on the home page.
Engineering design
Plants and assemblies in SolidWorks
Examples from the engineering design.
Test bench for power electronics
Test fixture, electronics and housing in one assembly.
Enquiry
Enquiry about engineering design and development
Describe the task, from the sheet metal part to the assembled unit.
